Solder Fume Extractors

complete air filtration solutions for fine airborne dust particulates, virus, bacteria, VOCs, VOGs, formaldehyde, chemical odor, smoke, smog, gas, fumes removal

multi-user/multi-station

Solder Fume Extractors

Reduce exposure to harmful soldering fumes by capturing them at the source. Prevent apparition of serious medical conditions such as skin and eye irritation,  allergenic conditions, bronchitis, sinonasal cancer and carcinogenic heart/lung diseases.

learn more solder fume extractors

People can become permanently sensitized to solder fumes

People can become permanently sensitized to solder fumes. As a result continued exposure may cause asthma and other respiratory health issues depending on the amount of exposure. Employees should be protected from these health risks by using the best fume extraction systems available.

Prevent respiratory problems

Worker safety is critically important in soldering applications. A well-designed and maintained dust and fume collection system is needed to prevent respiratory problems and keep facilities in compliance with current air-quality standards. In some cases, a good dust collection and ventilation system can eliminate the need for personal respirators and the challenge of getting employees to wear them.

Dust and fumes which are hazardous to health

Many industrial processes such as soldering, laser processing and welding all produce dust and fumes which are hazardous to health and which can also reduce productivity or increase rejected products.

Protect personnel from hazardous dust and fumes

Fumes can also damage expensive production equipment and cause extensive downtime for repair and/or cleaning. Many local and international health and safety regulations require the employer to protect personnel from hazardous dust and fumes. Failure to do so can result in expensive compensation claims and fines.

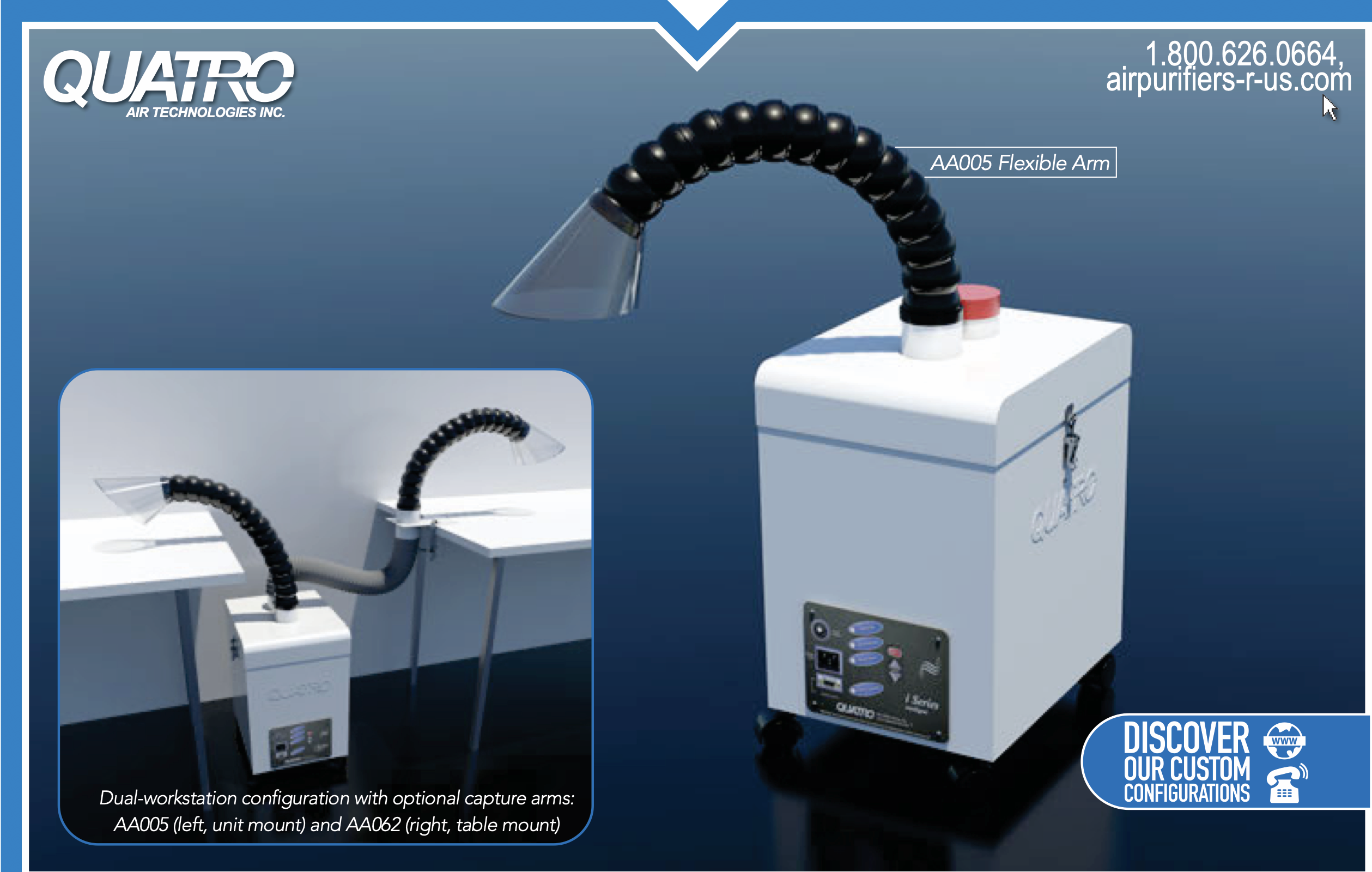

SPB 560 ​Compact Fume Extractor

Compact multi-stage solder fume extractor, ideal for low debris generating applcations. Up to 300 CFM nominal airflow.

Ideal for low debris generating application

The SPB 560 is a compact solder fume extractor, ideal for low debris generating applications. The SPB 560 is powered by a medium pressure motorized brushless impeller and comes equipped with a multi-stage filtration system and iSeries (digital) control panel.

Benefits: Compact , plug and play design, Small footprint, Captures airborne contaminants at source, Whisper quiet operation, CSA-certified, UL and RoHS compliant

Features: Multi-stage filtration system, iSeries (digital) control panel

OptionsHose or mounted source capture arm, Remote foot switch, Remote hand switch

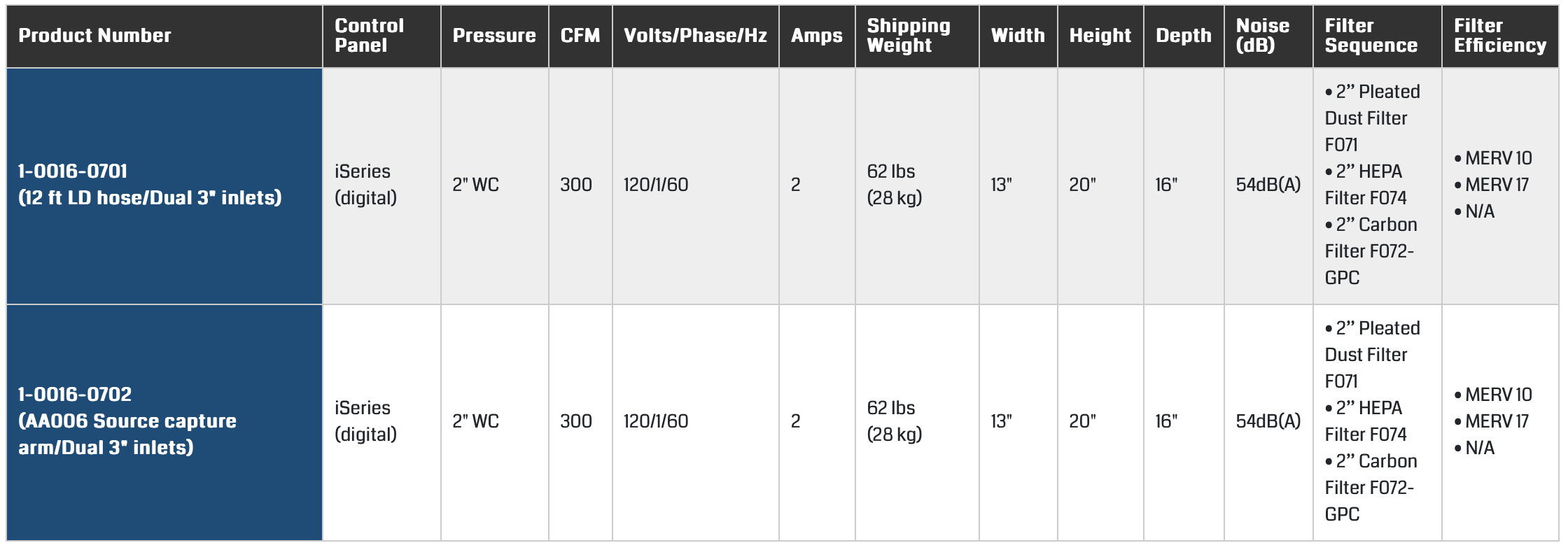

Specifications:| SPB560 specifications | Contact Us | SolderPure SPB560 PDF |

SPB 560 HC High Capacity Fume Extractor

High capacity multi-stage solder fume extractor, ideal for low debris generating applcations. Up to 300 CFM nominal airflow.

High capacity solder fume extractor, ideal for low debris generating applications

The SPB 560 HC is a high capacity solder fume extractor, ideal for low debris generating applications. The SPB 560 HC is powered by a medium pressure motorized brushless impeller. This unit comes equipped with a multi-stage filtration system and iSeries (digital) control panel.

Benefits: Compact plug and play design, Small footprint, Captures airborne contaminants at source, Whisper quiet operation, CSA-certified, UL and RoHS compliant

Features: Multi-stage filtration system, iSeries (digital) control panel

Options: Hose or mounted source capture arm, Remote foot switch, Remote hand switch

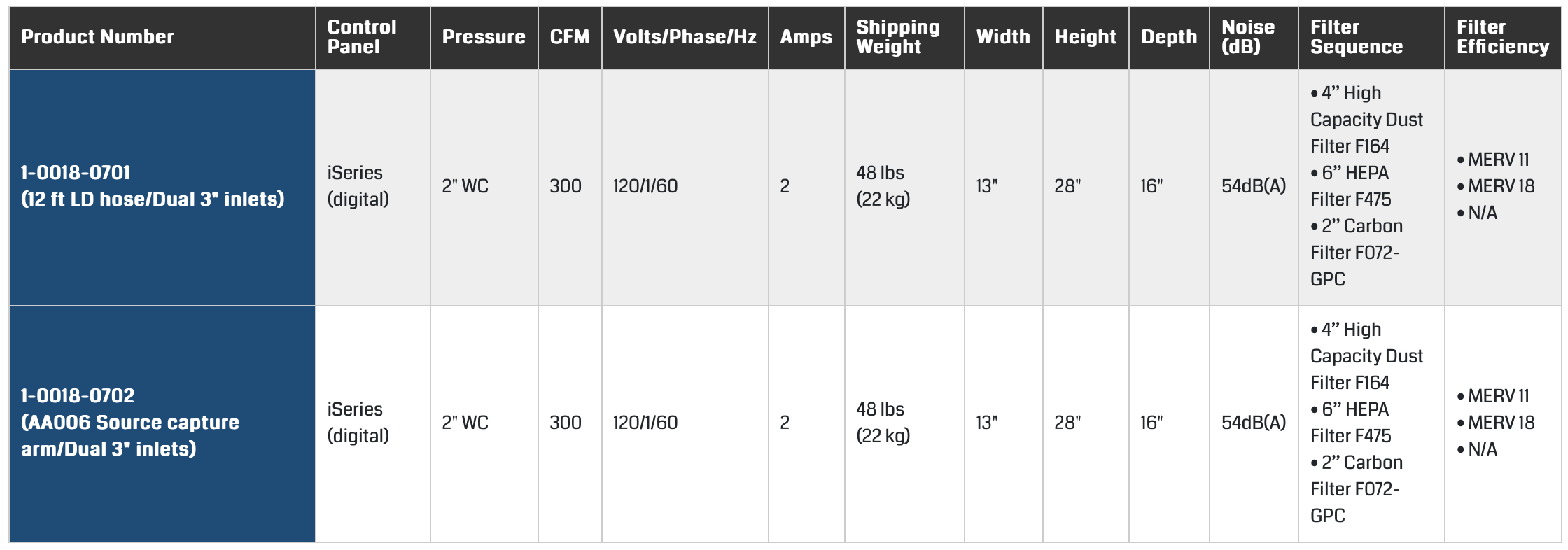

Specifications:| SPB560 HC Specifications | Contact Us | SolderPure HC-HD / SPB560 HC-HD PDF |

SPB 100 Mini Low Profile Fume Extractor

Low profile, light duty solder fume extractor with HEPA cartridge and carbon wrap. Up to 100 CFM nominal airflow.

Light duty solder fume extractor featuring a HEPA cartridge filter and carbon wrap

The SPB 100 Mini is low-profile, light duty solder fume extractor featuring a HEPA cartridge filter and carbon wrap. The SPB 100 Mini is powered by a medium pressure motorized brushless impeller and comes equipped with a multi-stage filtration system. The iSeries (digital) control panel features variable speed control, visual status indicators and audible alarms for filter status.

Benefits: Compact plug and play design, Small footprint, Whisper quiet operation, CSA-certified, UL and RoHS compliant

Features: Multi-stage filtration system, Motorized brushless impeller motor / blower, iSeries (digital) control panel

Options: Hose or mounted source capture arm, Remote foot switch, Remote hand switch

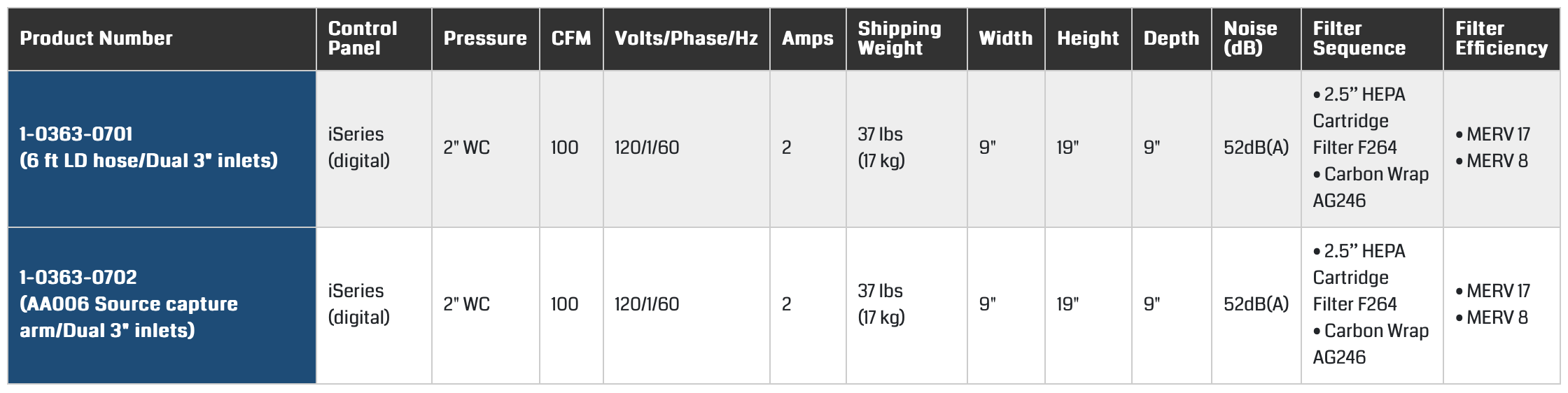

Specifications:| SPB100 Mini Specifications | Contact Us | SPB Mini PDF |

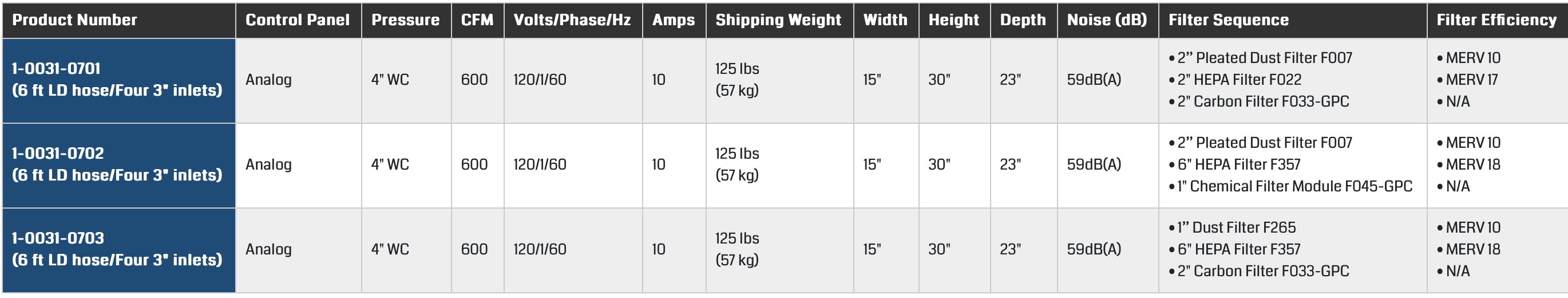

SPM 504 Medium Pressure Extractor

A multi-stage solder fume extraction system ideal for up to four (4) workstations. Up to 600 CFM nominal airflow.

Designed for multi-station applications

Designed for multi-station applications, the SPM 504 Fume Extractor features Quatro's proven filtration system, whisper quiet operation and enhanced mobility with heavy duty lockable casters. Includes 6 ft. of 3" diameter hose.

Benefits: Compact plug and play design, Small footprint, Whisper quiet operation, CSA-certified, UL and RoHS compliant

Features: Multi-stage filtration system, Brushless motor for longer lifecycle, Analog control panel

Options: Capture arms available, Multiple filter sequence configurations - (see Technical Specifications) | Contact Us |

CollectALL Multi-Station Fume Extraction

Compact, space-saving design with a multi-stage filtration system. Up to 282 CFM nominal airflow.

Ideal for low debris generating applications

The CollectALL is a high capacity multi-purpose solder fume extractor, ideal for low debris generating applications. The CollectALL comes equipped with dual 3" inlets, 16 foot hose and your choice of dual Infinity motors or a single Brushless motor, and features a iSeries (digital) control panel.

Benefits: Compact plug and play design, Small footprint, True HEPA filter captures 99.97% of fine particles (0.3 μm), Whisper quiet operation, CSA-certified, UL compliant

Features: Easy disposable bag filter captures all precious metals, 16 ft. hose included, iSeries (digital) control panel

OptionsInfinity or Brushless motors, FlexArm for source capture of fumes

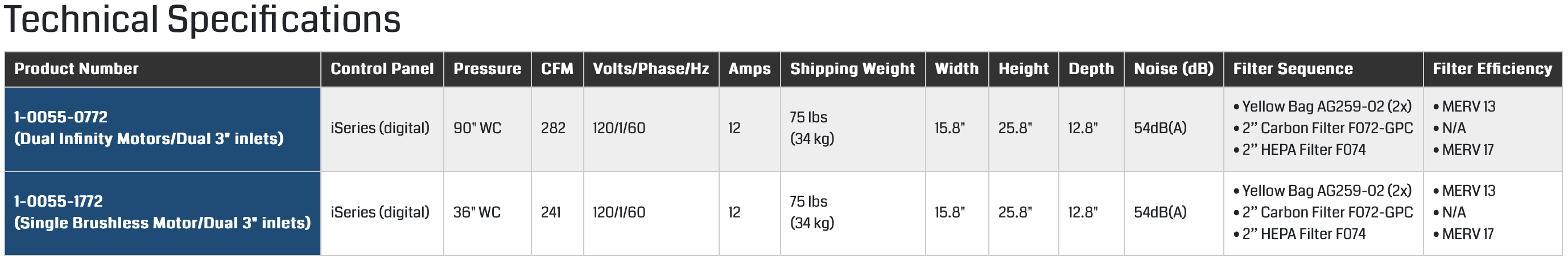

Specifications:| Contact Us | CollectALL Specifications |

SPH 470 Multi-Station Fume Extraction

Whisper-quiet performance, space-saving design with a multi-stage filtration system. Up to 282 CFM nominal airflow.

An excellent multi-station solution for heavy duty applications

The SPH 470 Fume Extractor series is an excellent multi-station solution for heavy duty applications. Featuring a multi-stage filtration system with multiple filter sequence configurations to address your needs, an iSeries (digital) control panel and heavy duty lockable casters, the SPH 470 Fume Extractor series provides everything you need in a fume extraction system.

Benefits: Compact plug and play design, Ultra-small footprint, Whisper quiet operation, CE and CSA-certified, RoHS compliant

Features: iSeries (digital) control panel, Multi-stage filtration system with HEPA, 25 ft hose included, 4 capture arms included

Options: Dual Infinity or Single Brushless motors, 3" or 4" diameter inlet / hose, Multiple filter sequence configurations (see Technical Specifications), Knockout pad - F166, Universal cable - E427

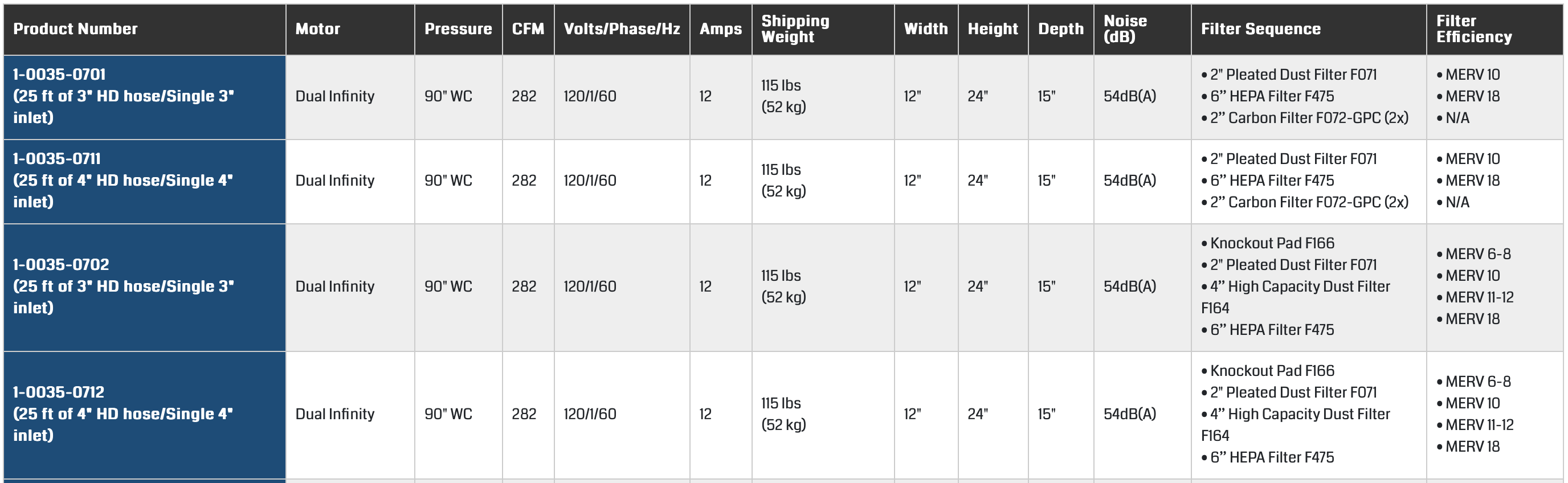

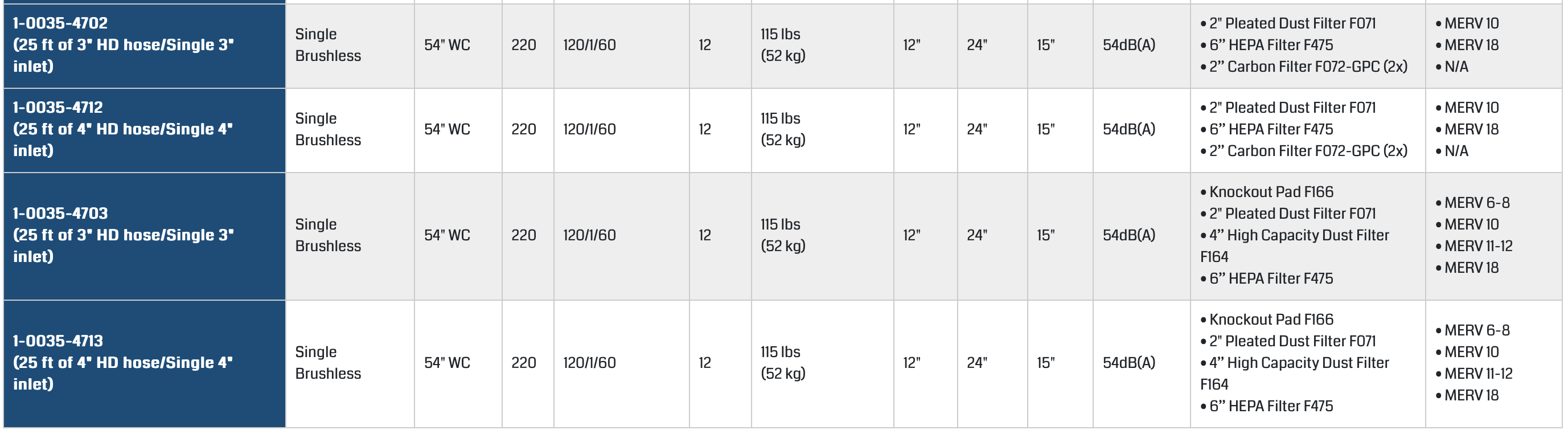

Specifications:| Contact Us | SPH470 Specifications: Dual Infinity Brushed Type Motor > Single Brushless Motor | SPH400 PDF |

Multi-Station / Multi-User

SPH 870 Fume extractor

SPH 870 For High Volume Applications

Multi-stage filtration system featuring your choice of brushless or infinity motors. Up to 440 CFM nominal airflow.

Provides everything you need in a multi-station fume extraction solution

The SPH 870 Fume Extractor series provides a cost-effective fume extraction solution for heavy duty applications. Featuring a multi-stage filtration system with multiple filter sequence configurations to address your needs, an iSeries (digital) control panel, and heavy duty lockable casters for portability, the SPH 870 Fume Extractor series provides everything you need in a multi-station fume extraction solution.

Benefits: Portable plug and play design, Ultra-small footprint, Whisper quiet operation, CSA-certified, UL and RoHS compliant

Features: iSeries (digital) control panel, Multi-stage filtration system with HEPA, Two 50 ft hoses included, 8 capture arms included

Options: Three Infinity or Dual Brushless motors, 3" or 4" diameter inlets / hoses, Multiple filter sequence configurations (see Technical Specifications), Knockout pad - F166, Universal cable - E427

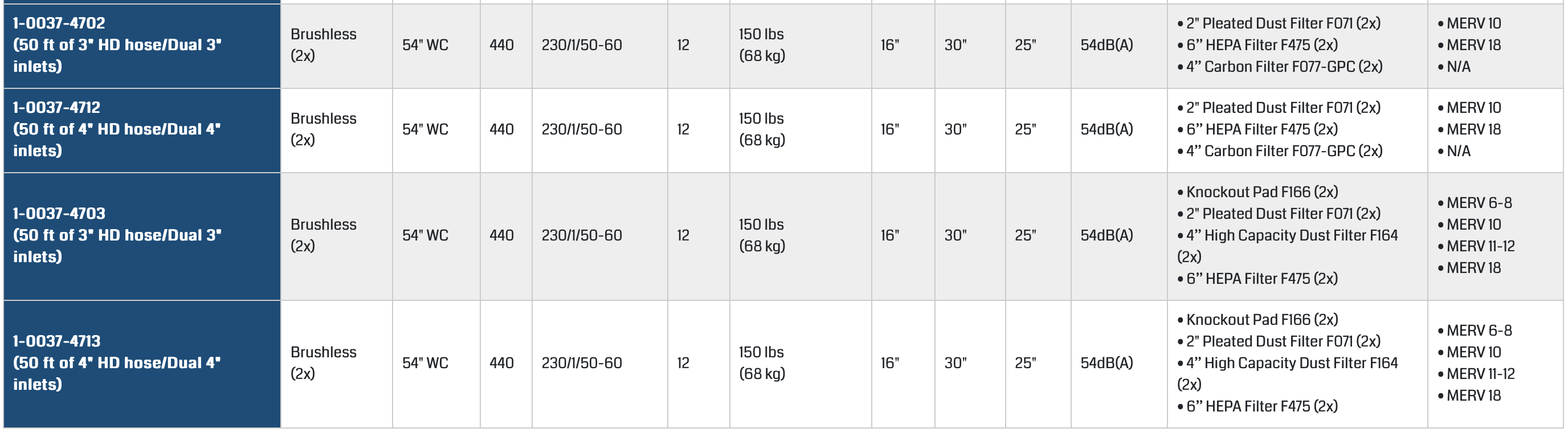

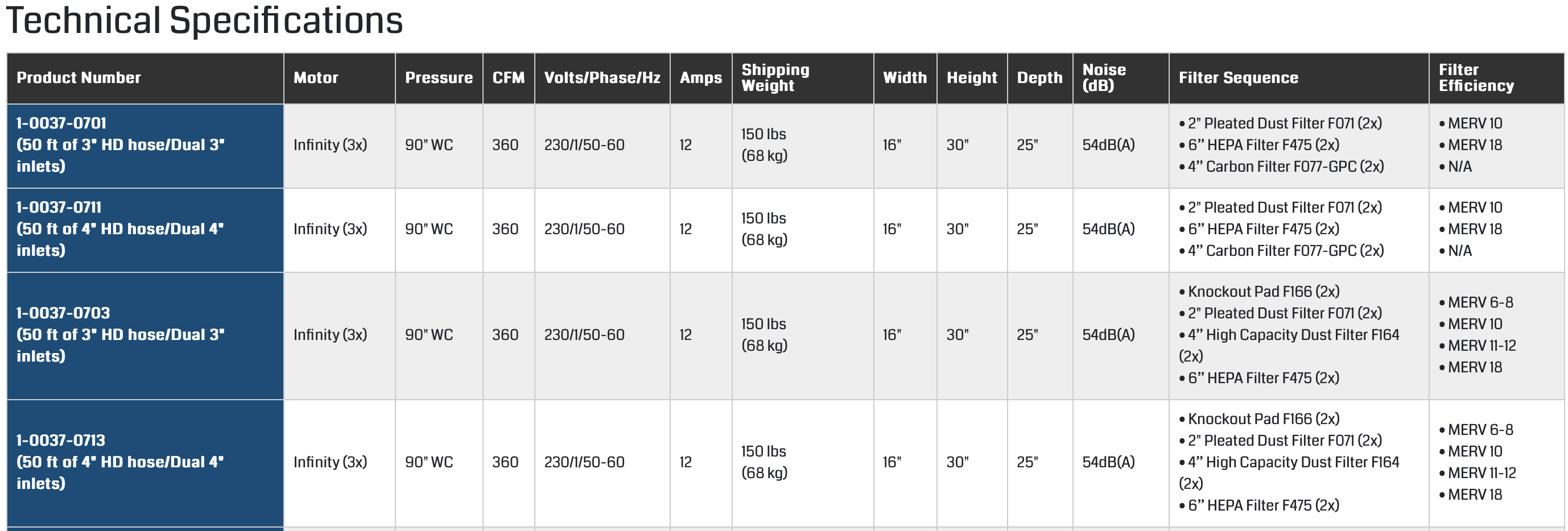

Specifications:| Contact Us | SPH870 Specifications: Triple Infinity Brushed Type Motors > Dual Brushless Motor | SPH800 PDF |

Request Quote - Info - Call 1-800-626-0664 to order

Infinity Motor

Designed for an intermittent duty usage with an expected service life of 1500 - 2000 hours

Brushless Motor

Designed for continous / heavy duty usage with an expected service life of 15000 - 20000 hours
