We're Your Source of Genuine Quatro Air Filters and Parts
HEPA Filters, Bag Filters, Dust Pre-Filters, Chemical Odor Filters, Bulk Chemical Media, Motors, UV Light, etc.
Our Multi-stage Laser Fume Extraction solutions are compatible with virtually ANY laser engraver, for a clean and safe workspace.
what laser do you have?The SPH 400 Fume Extractor series is designed for light to medium duty laser applications.
FEATURES:
Our most popular model for light and medium duty applications
Multi-stage filtration system: pre-filter, HEPA and chemical filter
Up to 50 lbs. (23 kg) of chemical filtration media
LaserBlue gel seal guarantees ZERO FILTER BYPASS
Dual high speed turbine for high suction, pressure and airflow
Enhanced mobility with heavy duty lockable casters
Whisper quiet operation
Digital control panel
Also available: brushless units and custom filter configurations
SPECIFICATIONS:
Air Flow: 0-482 m³/h / 0-280 CFM
Max Pressure: 90” W.C. / 22 kPa
Motor(s): 2 X 1.0 kW High Speed Turbine
Voltage: 120V or 230V
Dimensions: 12"W x 15"D x 24"H / 304mm x 381mm x 762mm
Filter Sequence: Multi layered knock-out pad (F166-125), Pleated pre-filter, 30% ASHRAE rated (F071), 2” Medical grade HEPA filter 99.97% (F074), 8“ Chemical filter (AG097)
Optional lnlets: 2”, 3” or 4" diameter
Discharge: Recirculation grille (Standard configuration);
Optional 3" or 4" side collars for venting to the exterior
Sound Level: 62 dBA at full speed
Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
Suction hose: 6 feet (2m) of heavy duty hose & clamps

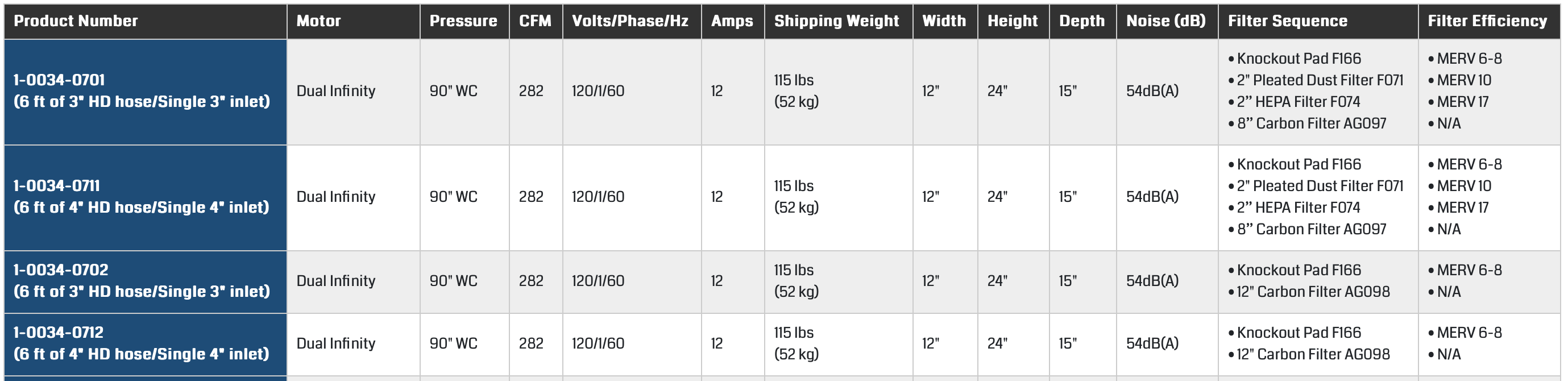

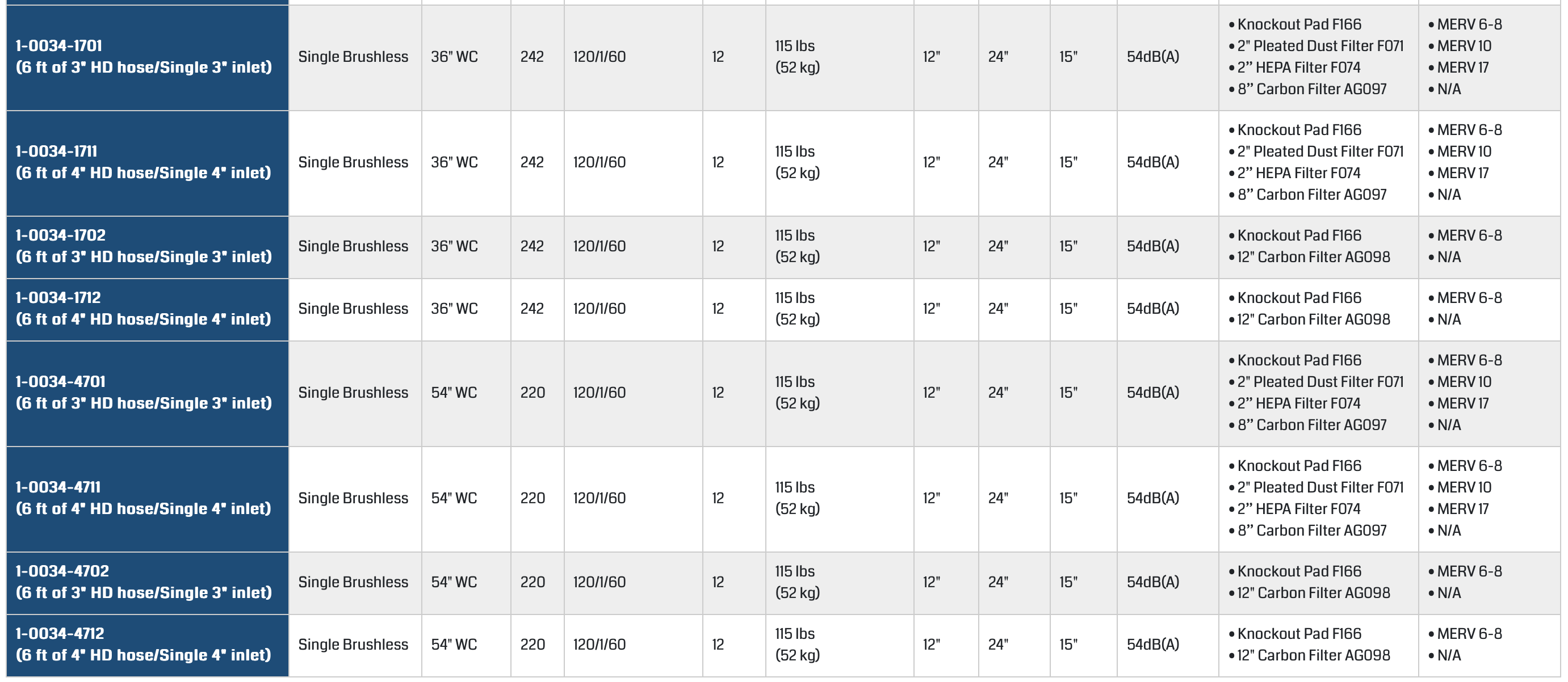

| Contact Us | SPH400 Specifications: Dual Infinity Brushed Type Motor > Brushless Motor |SPH400 PDF|PF401-PF801 Pre-Filter Module|
The CSA 600 Fume Extractor series is the ideal solution for heavy duty laser applications
FEATURES:
Designed for large Laser cutting, marking, engraving and AMT systems
Multi-stage filtration system: filter bag (or high capacity pleated filter), medical grade HEPA and chemical filter
Refillable, 15” deep chemical filter module, up to 66 lbs. (30kg)
LaserBlue gel seal guarantees ZERO FILTER BYPASS
Dual high speed turbine for high suction, pressure and airflow
Office friendly, whisper quiet operation
Digital control panel
Enhanced mobility with heavy duty lockable casters
SPECIFICATIONS:
Air Flow: 0-480 m³/h / 0-282 CFM
Max Pressure: 90" W.C. / 22 kPa
Motor(s): 2 X 1.0 kW High Speed Turbine
Voltage: 120V or 230V
Dimensions: 13"W x 21"D x 45"H / 330mm x 533mm x 1143mm
Filter Sequence: Antimicrobial high capacity bag filter (F128), 6" Pleated filter, 60% ASHRAE rated (F073), 2” Medical grade HEPA Filter 99.97% (F074), 15“ Chemical filter (AG111)
Optional lnlets: 1.5”, 2”, 3” or 4" diameter
Discharge: Recirculation grille (Standard configuration);
Optional 3" or 4" side discharge collars for venting to the exterior
Sound Level: 52 dBA at full speed
Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
Suction hose: 6 feet (2m) of heavy duty hose and clamps

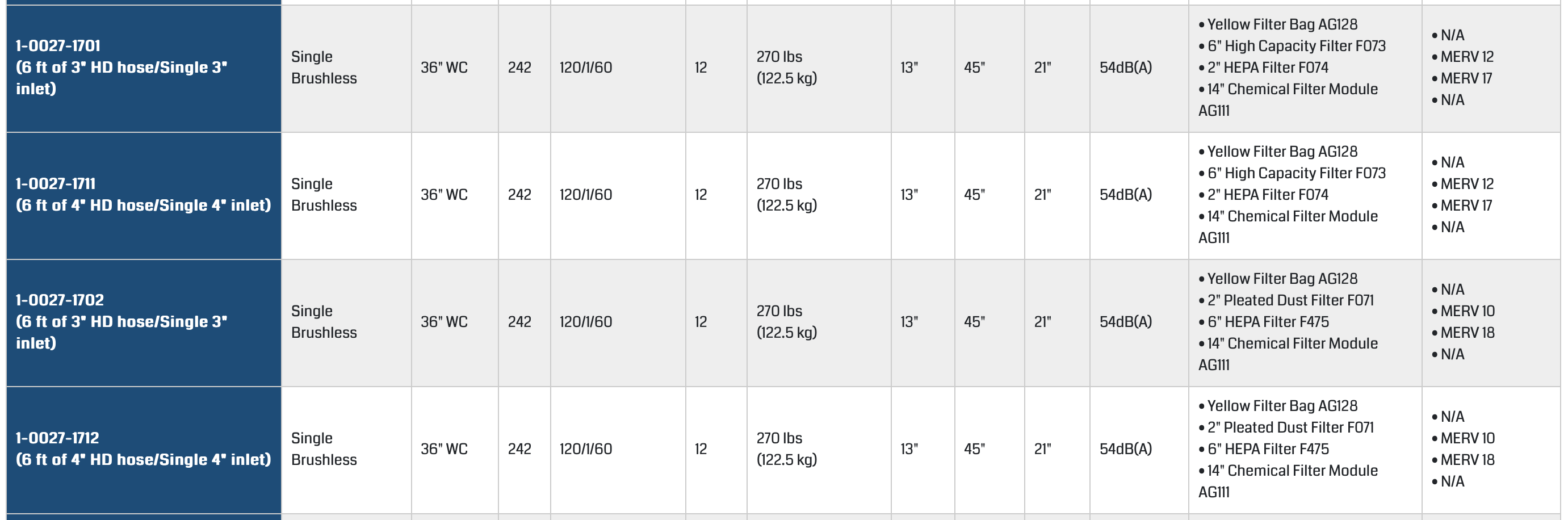

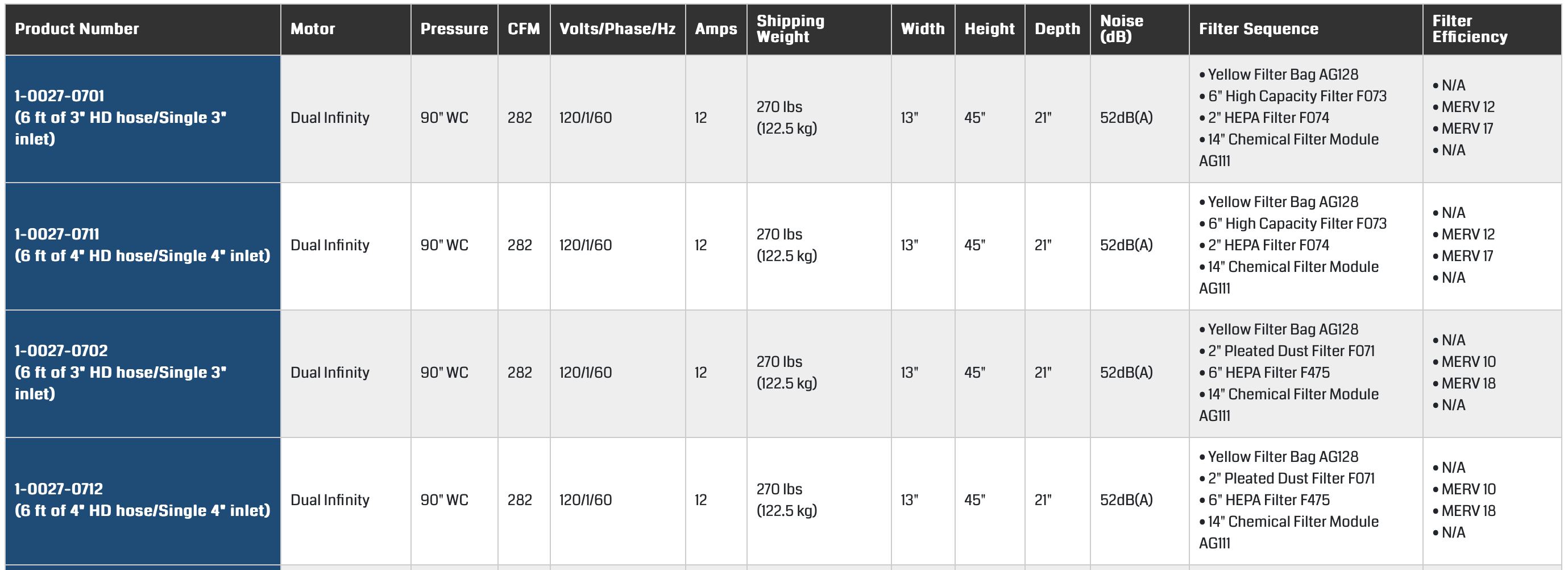

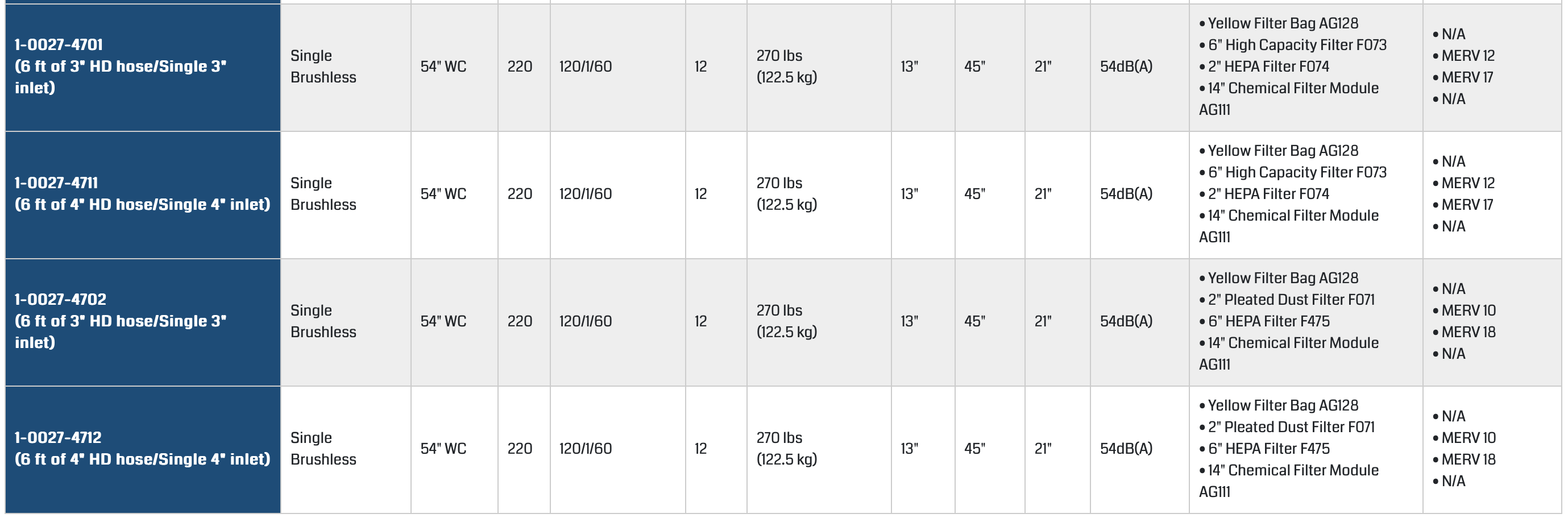

| Contact Us| CSA600 Specifications: Dual Infinity Brushed Type Motor > Brushless Motor: 36 WC > 54 WC |
SPH 800 Fume Extractor series is designed for heavy duty laser applications.
FEATURES:
Our most powerful fume extractors
Cost-effective high pressure system
LaserBlue gel seal guarantees ZERO FILTER BYPASS
Whisper quiet operation
Enhanced mobility with heavy duty lockable casters
Easy-access filter compartment (no tools required)
Powered by 3 high-speed turbines (CSA/UL approved)
Digital control panel
Up to 100 lbs. (45 kg) of chemical filtration media
Also available: brushless units and custom filter configurations
SPECIFICATIONS :
Air Flow: 0- 610 m³/h / 0-360 CFM
Max Pressure: 90" W.C. / 22 kPa
Motor(s): 3 X 1.0 kW High Speed Turbine, UL & CSA Listed
Voltage: 230V
Dimensions: 16"W x 25"D x 30"H / 406mm x 635mm x 760mm
Filter Sequence: Multi layered knock-out pad (1 / inlet) (F166-125), 2 x Pleated pre-filter, 30% ASHRAE rated (F071), 2 x 2” Medical grade HEPA filter 99.97% (F074), 2 x 8“ Chemical filter (AG097)
Optional lnlets: 1.5”, 2”, 2.5“, 3” or 4" diameter
Discharge: Recirculation grille (Standard configuration);
Optional 3" or 4" side discharge collars for venting to the exterior
Sound Level: 54 dBA at full speed
Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
Suction hose: 6 feet (2m) of heavy duty hose and clamps

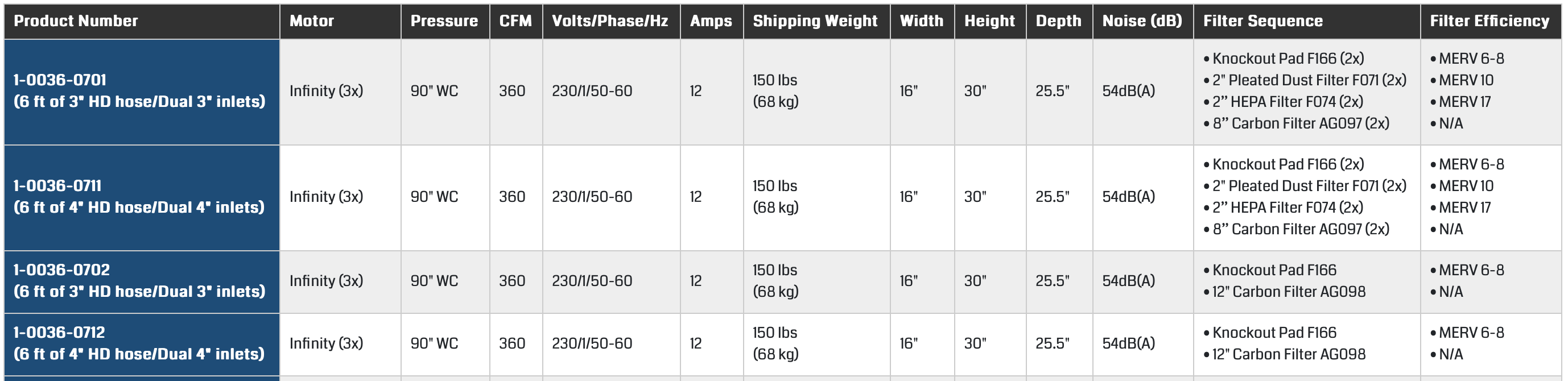

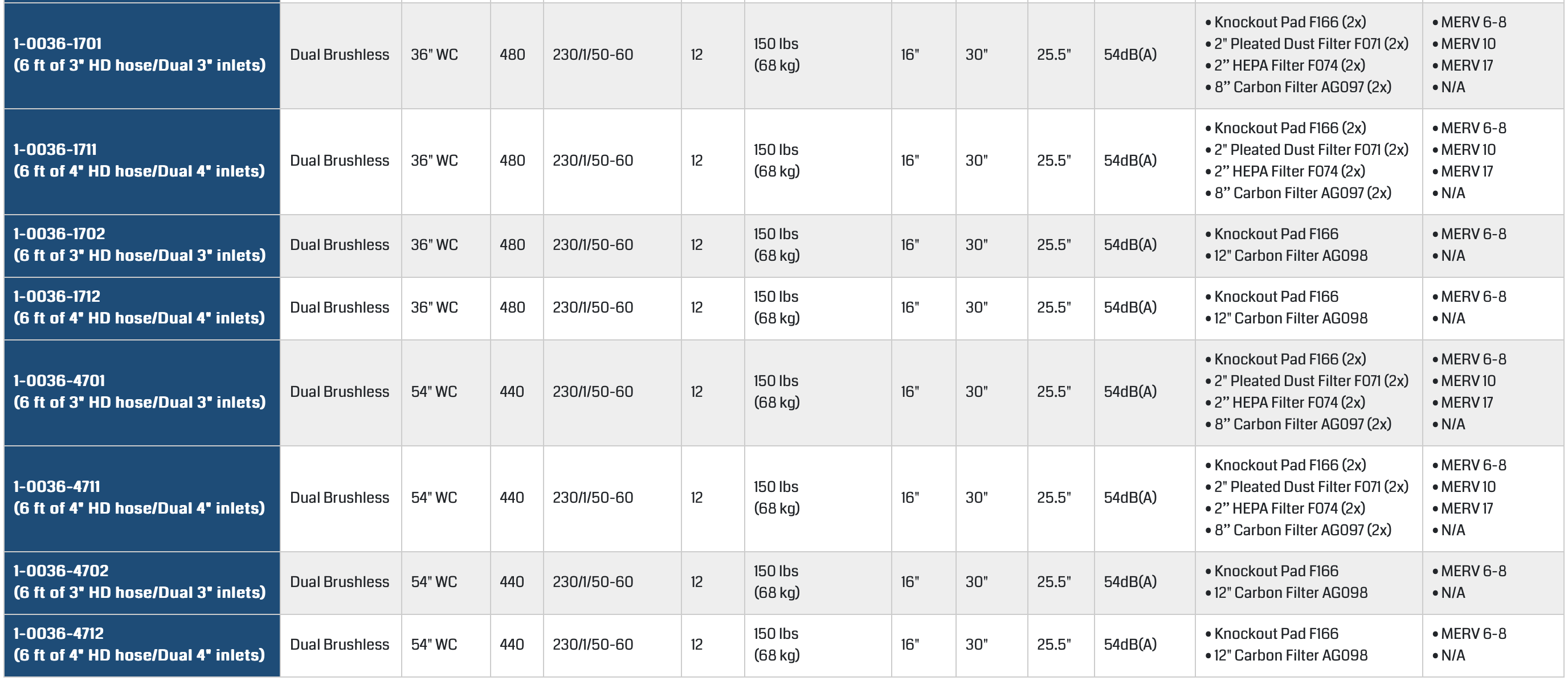

| Contact Us | SPH800 Specifications: Triple Infinity Brushed Type Motor > Dual Brushless Motor |SPH800 PDF|PF401-PF801 Pre-Filter Module|
